October 2004, Dortmund and Dusseldorf

Pictures taken at and nearby a historic boat lift in Dortmund, and of cargo traffic on the River Rhine passing through Dusseldorf.

Home|Previous Page|Next Page

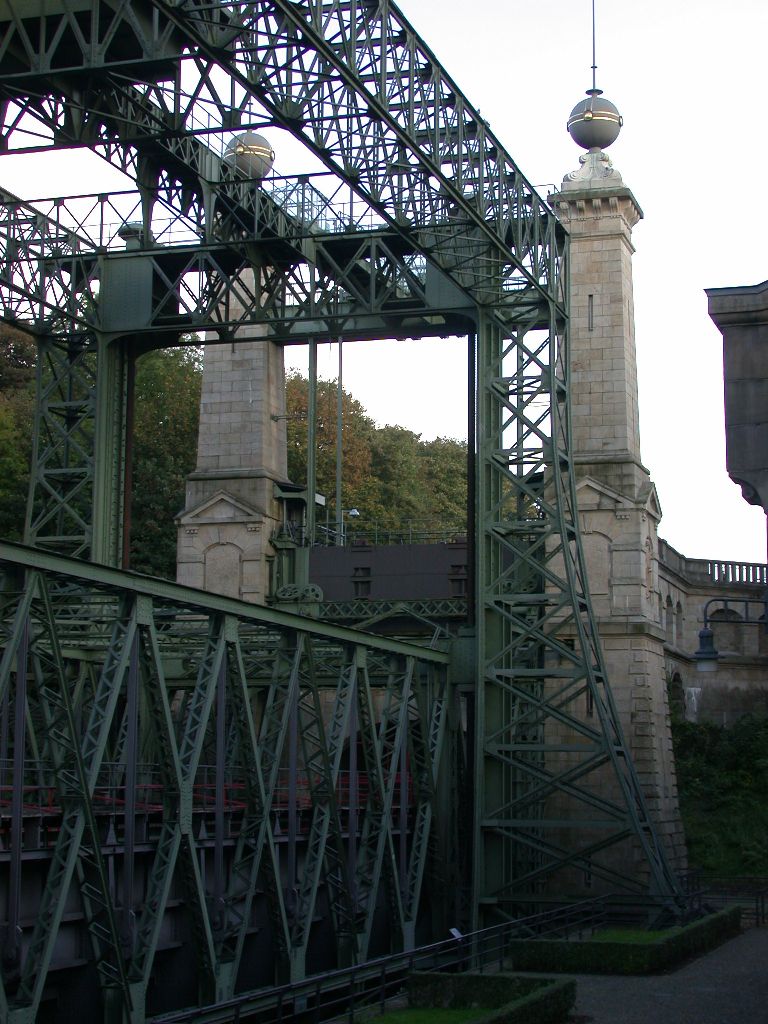

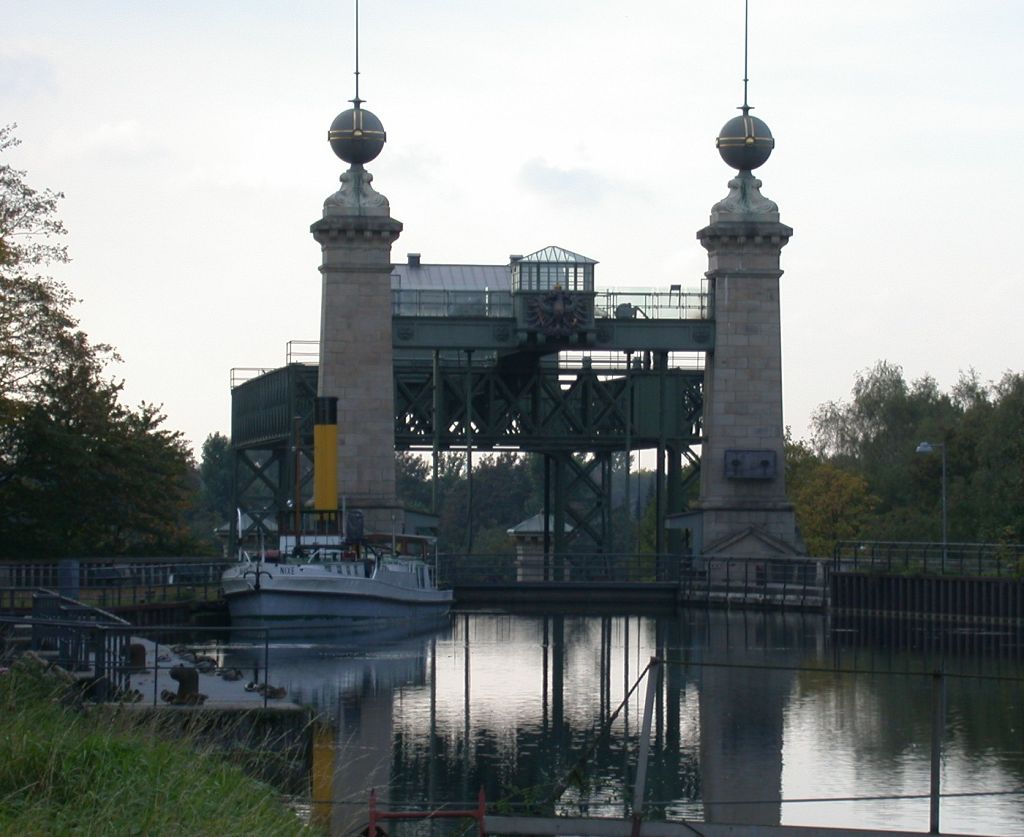

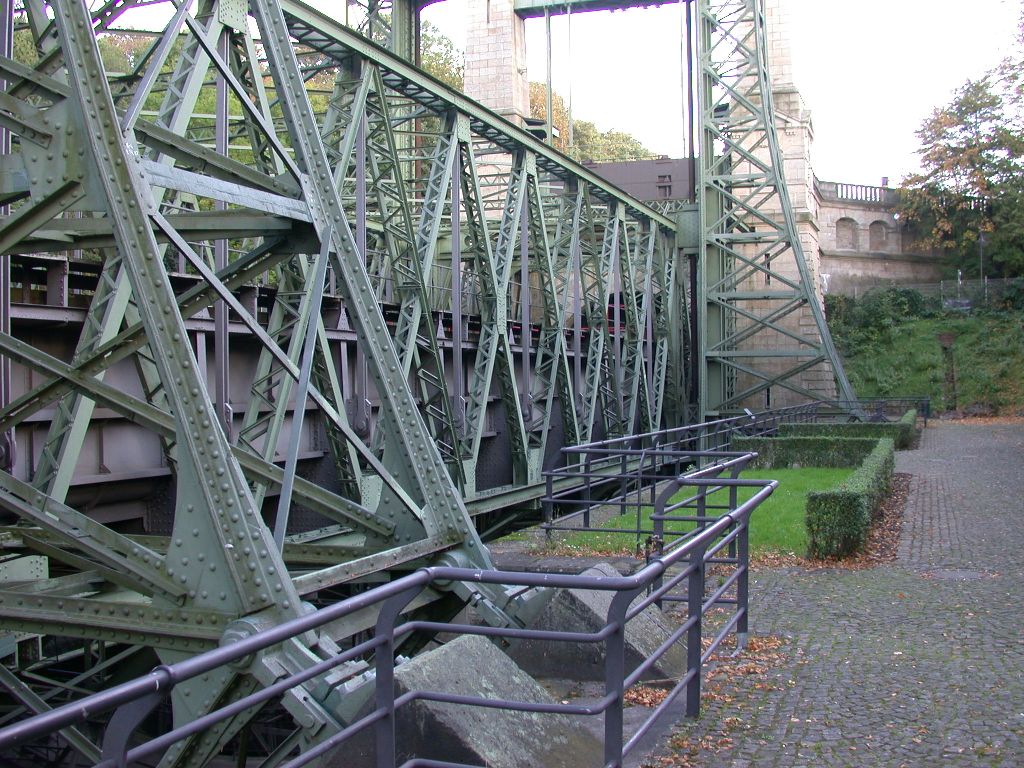

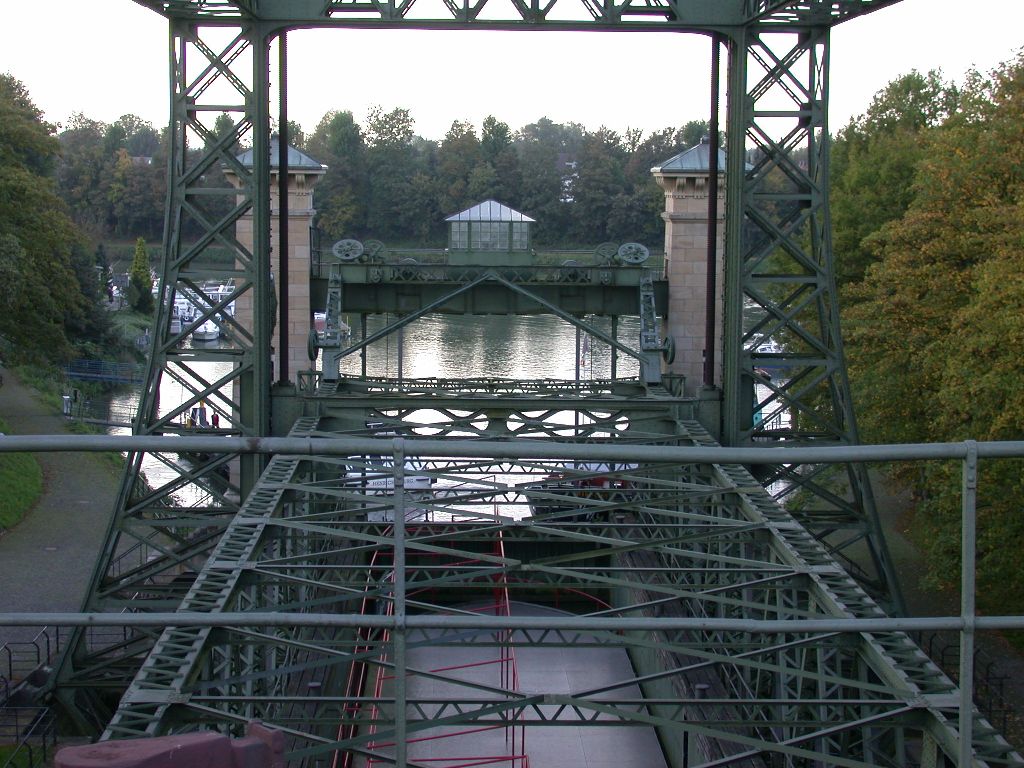

The following pictures are of a historic boatlift on the canal to Dortmund harbour. Dortmund harbour is on an elevated section of canal with poor water supply, so heroic engineering efforts were made to preserve water. The original boat lift could transfer boats with minimal use of water (compared with a simple lock). A later effort (also now defunct) was a single lock with 5 side-ponds. In the 1960s (?) a second boat lift was built, but most traffic now goes through a modern lock with two side pounds. I am told that back-pumping is now used to compensate for the water used (50% lock volume per lock cycle)


160.99 Kb
768 x 1024

205.91 Kb
1024 x 768

193.77 Kb
1024 x 768

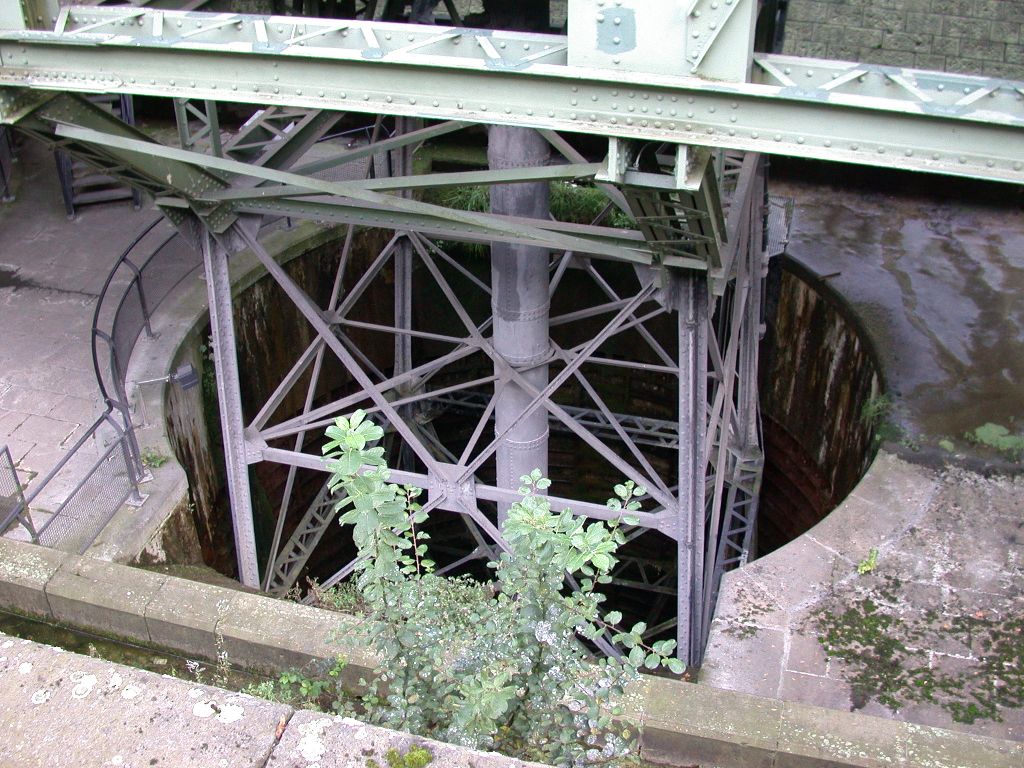

One of three large water-filled piston shafts that use hydrostatic force (flotation) to suppport much of the weight of the caisson and its contents.


84.15 Kb
768 x 1024

169.32 Kb
1024 x 768

186.28 Kb
768 x 1024

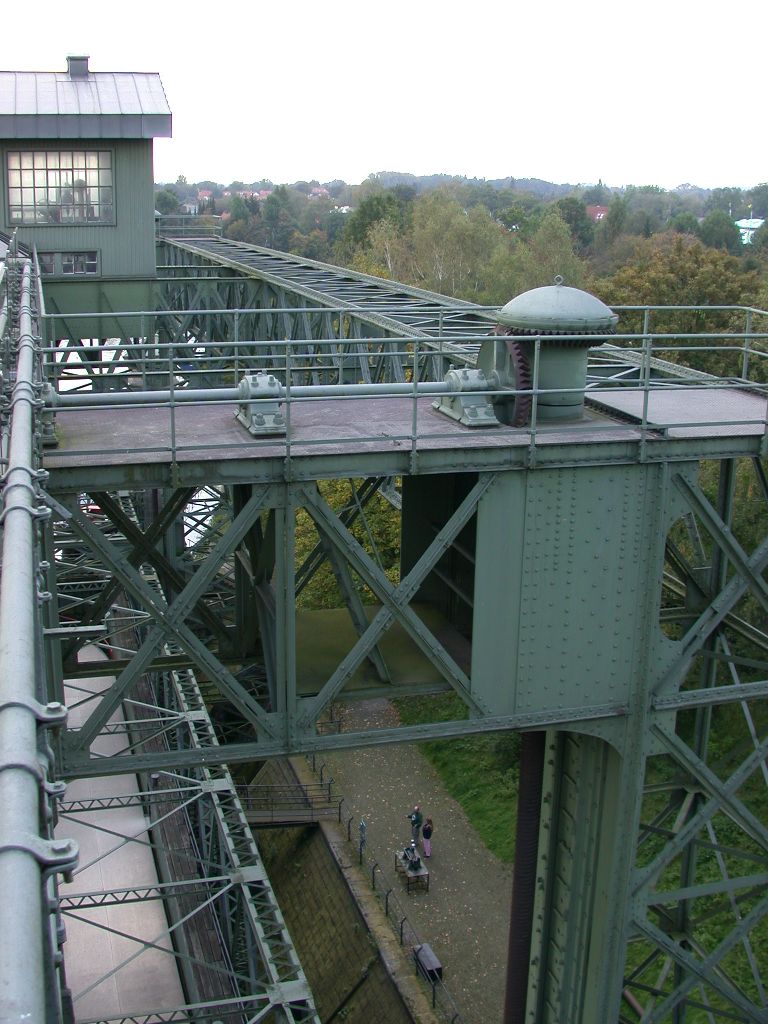

This picture shows one of the screw-jacks used to raise and lower the lift.


95.79 Kb
768 x 1024

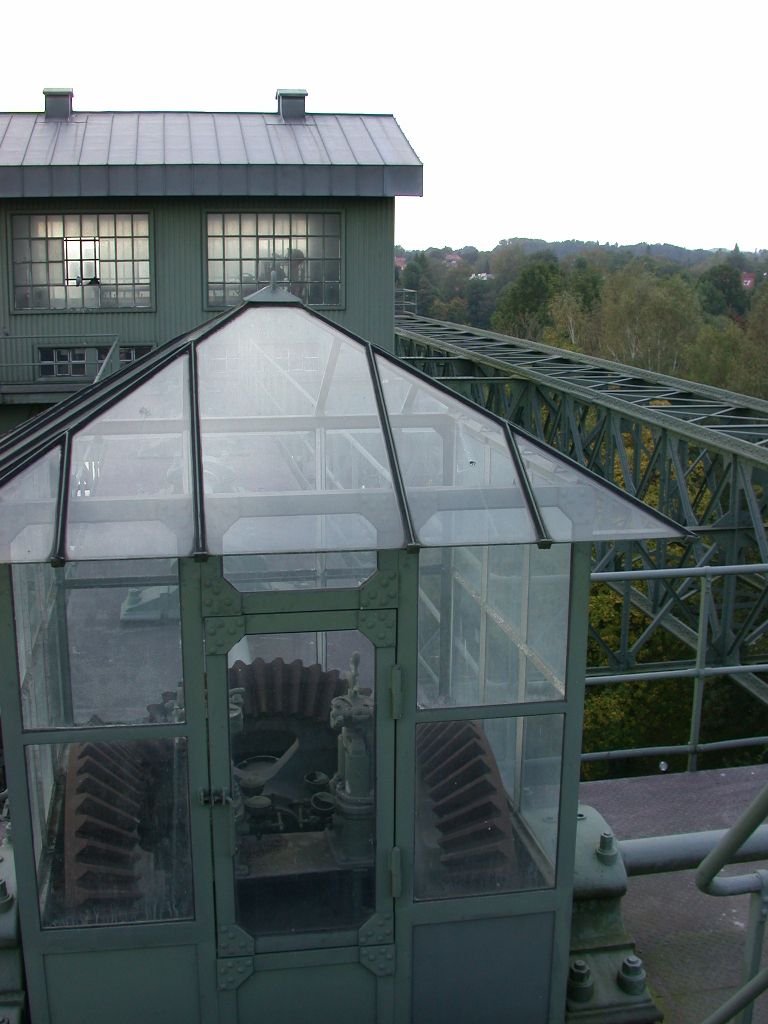

The engine house and part of the drive train used to power the lift screw-jacks.


155.85 Kb
1024 x 768

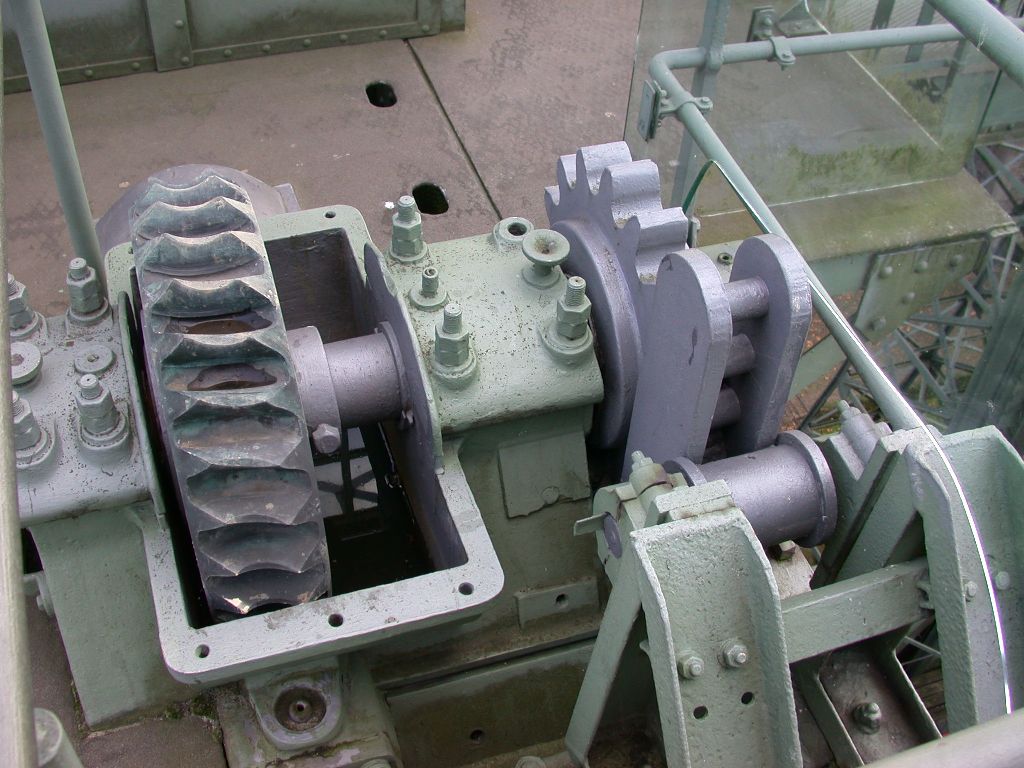

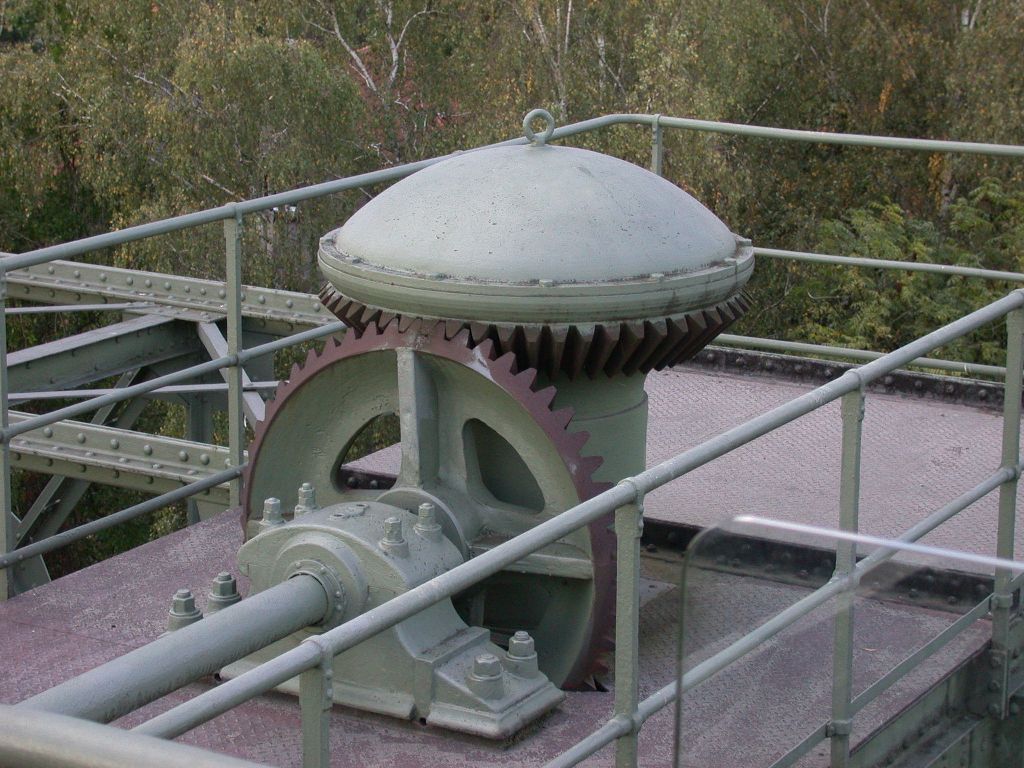

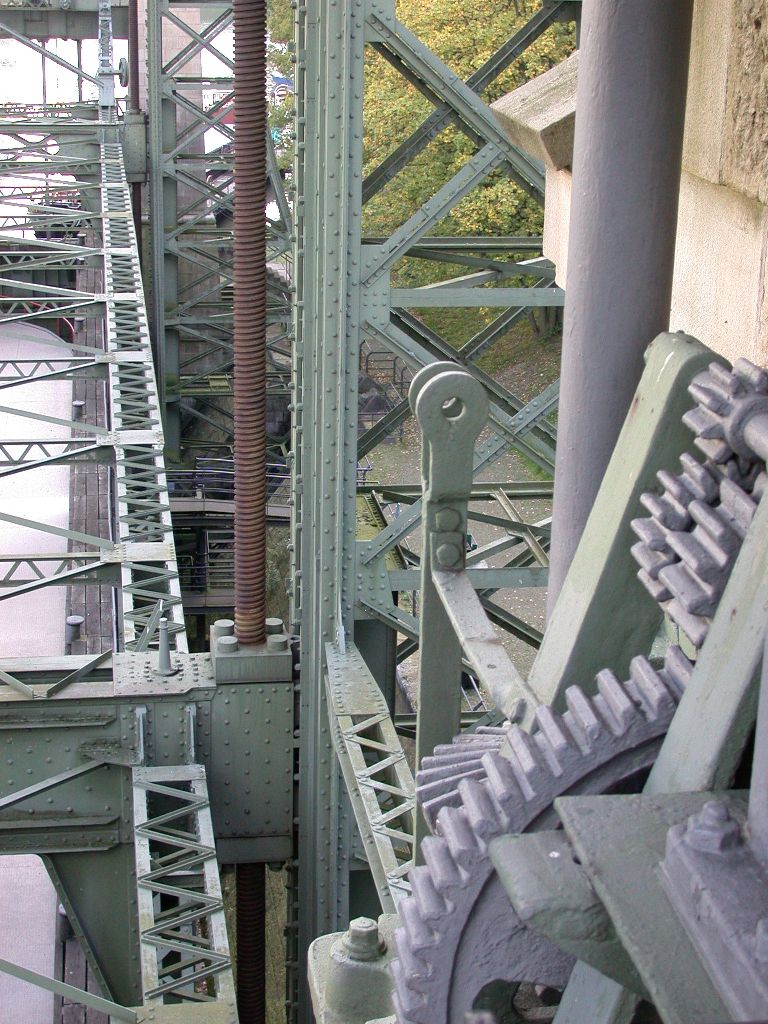

Final drive to one of the screw-jacks. To give a sense of scale, the railings here are about waist-hight.


140.22 Kb
768 x 1024

66.20 Kb
768 x 1024

133.72 Kb
1024 x 768

Part of the guillotine gate lift mechanism.


103.96 Kb
1024 x 837

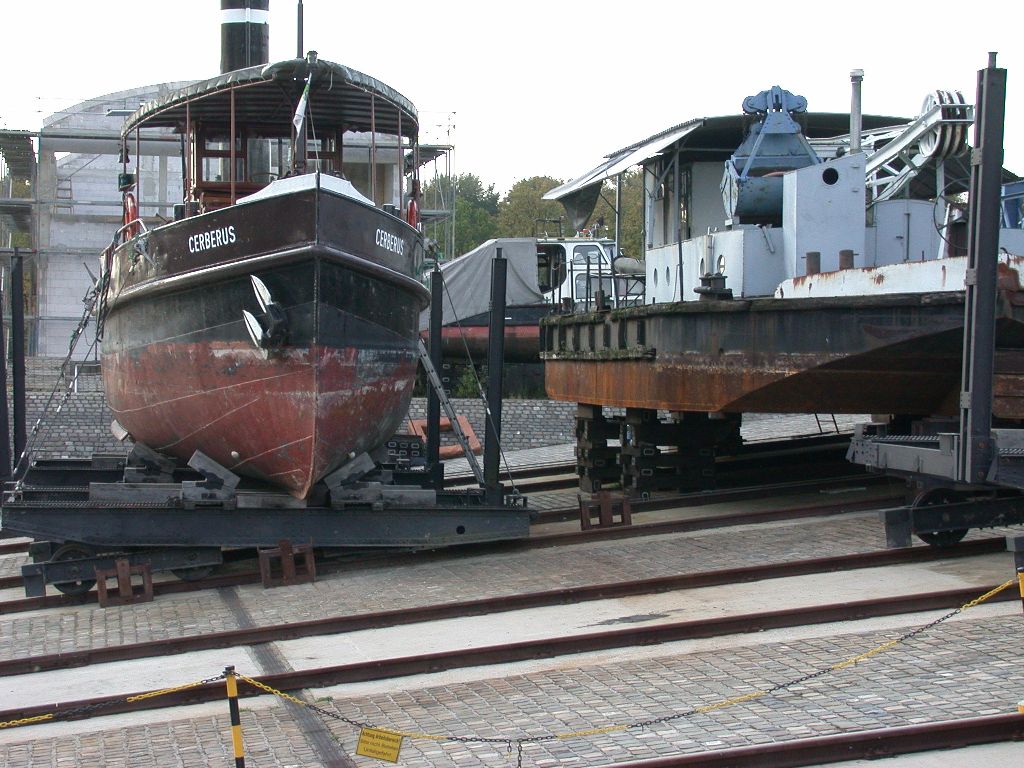

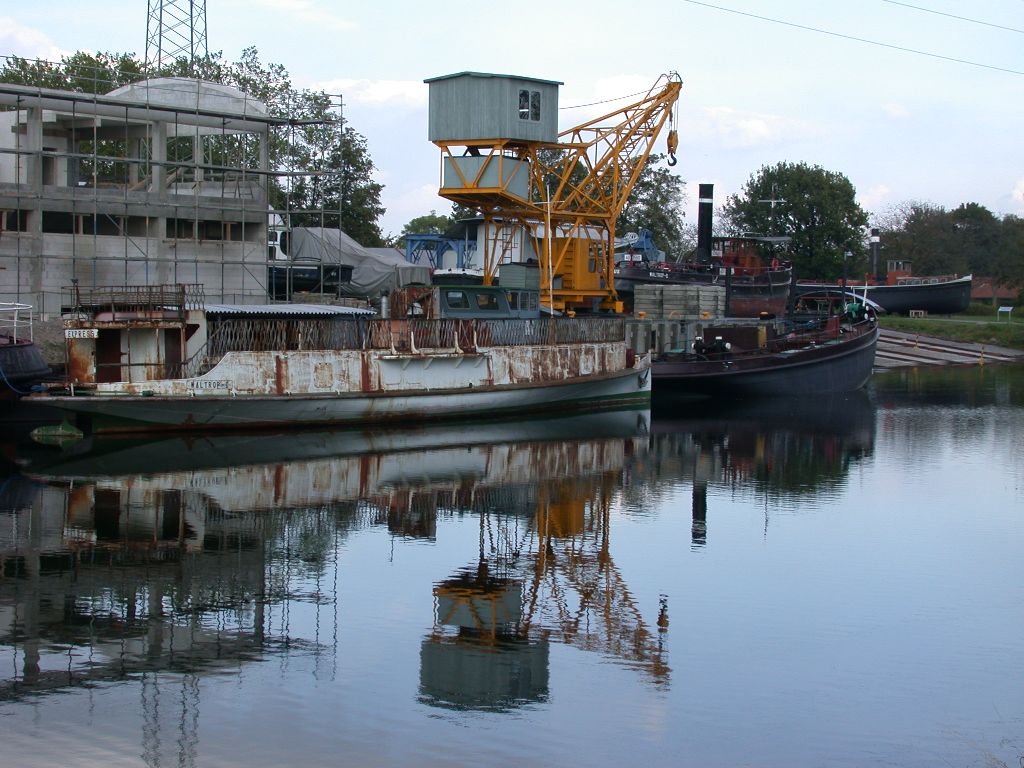

The pictures below are some glipses of a museum of historic boats, of which the original boat lift is a part. Also, beside the museum, are a modern working lock and boat lift.


142.46 Kb
1024 x 768

158.55 Kb
1024 x 768

82.31 Kb
1024 x 768

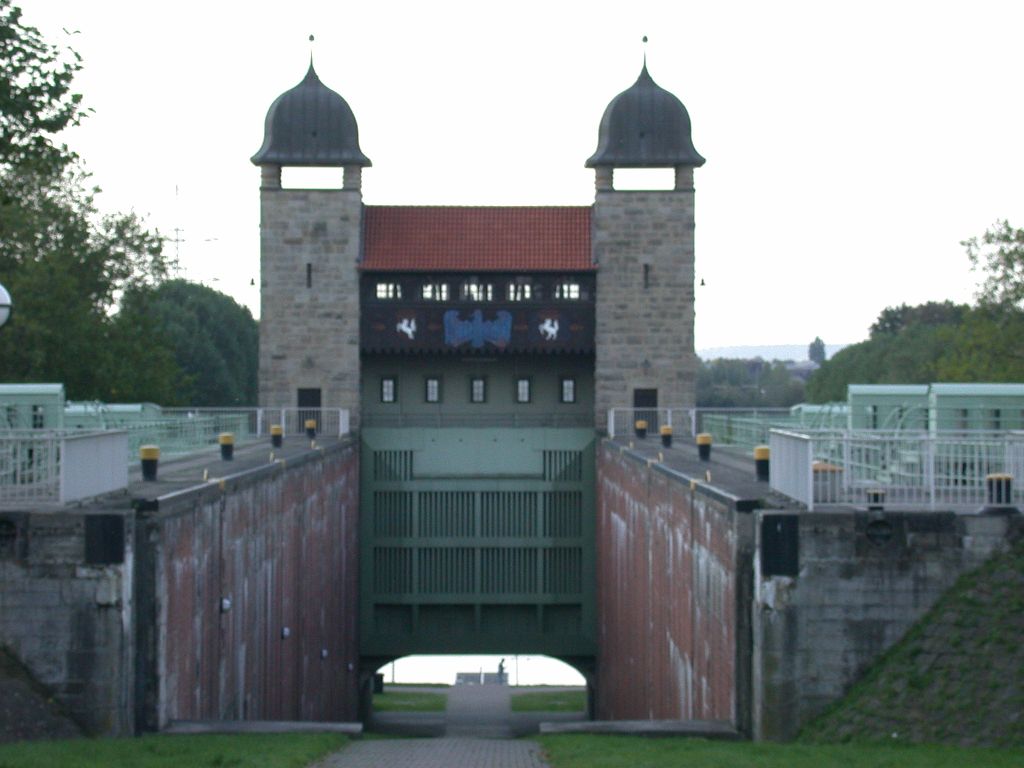

The first lock, converted into a footpath


144.90 Kb
768 x 1024

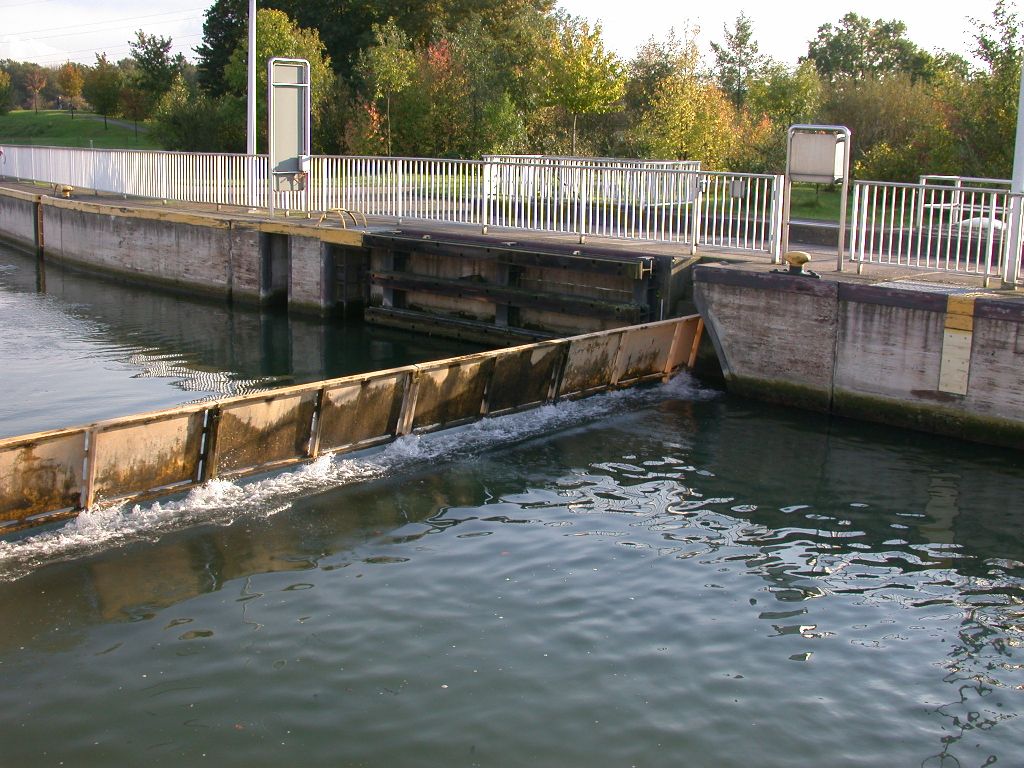

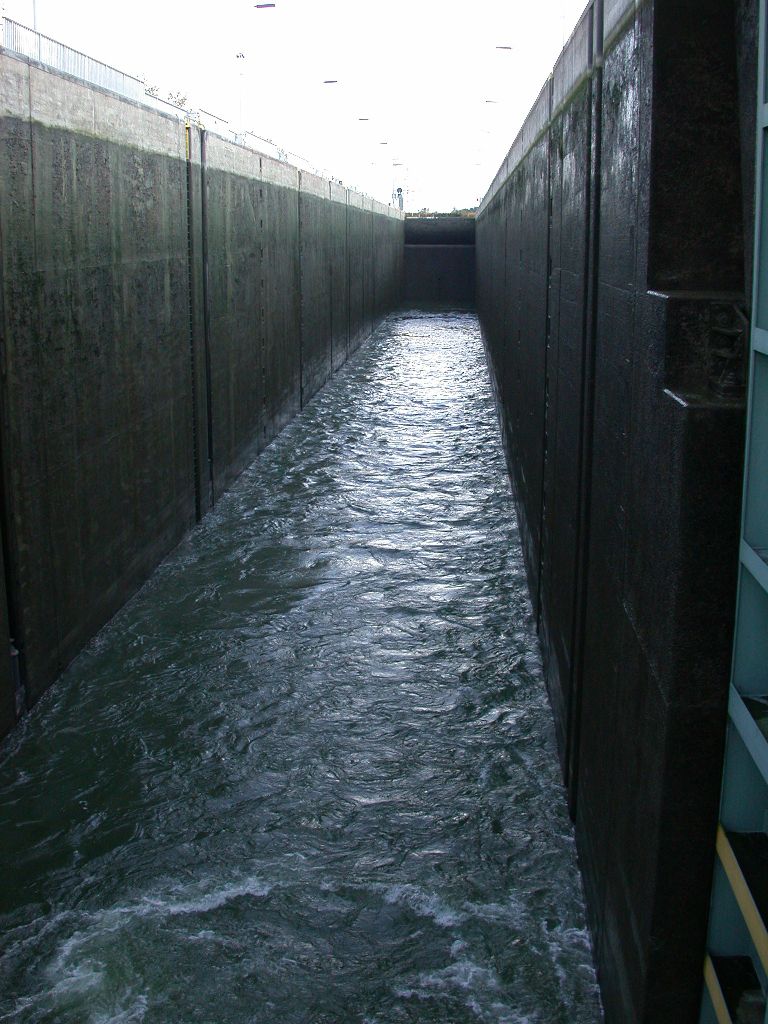

The new lock through which most traffic now passes


128.26 Kb
1024 x 768

172.77 Kb
1024 x 768

Page 1 of 3
